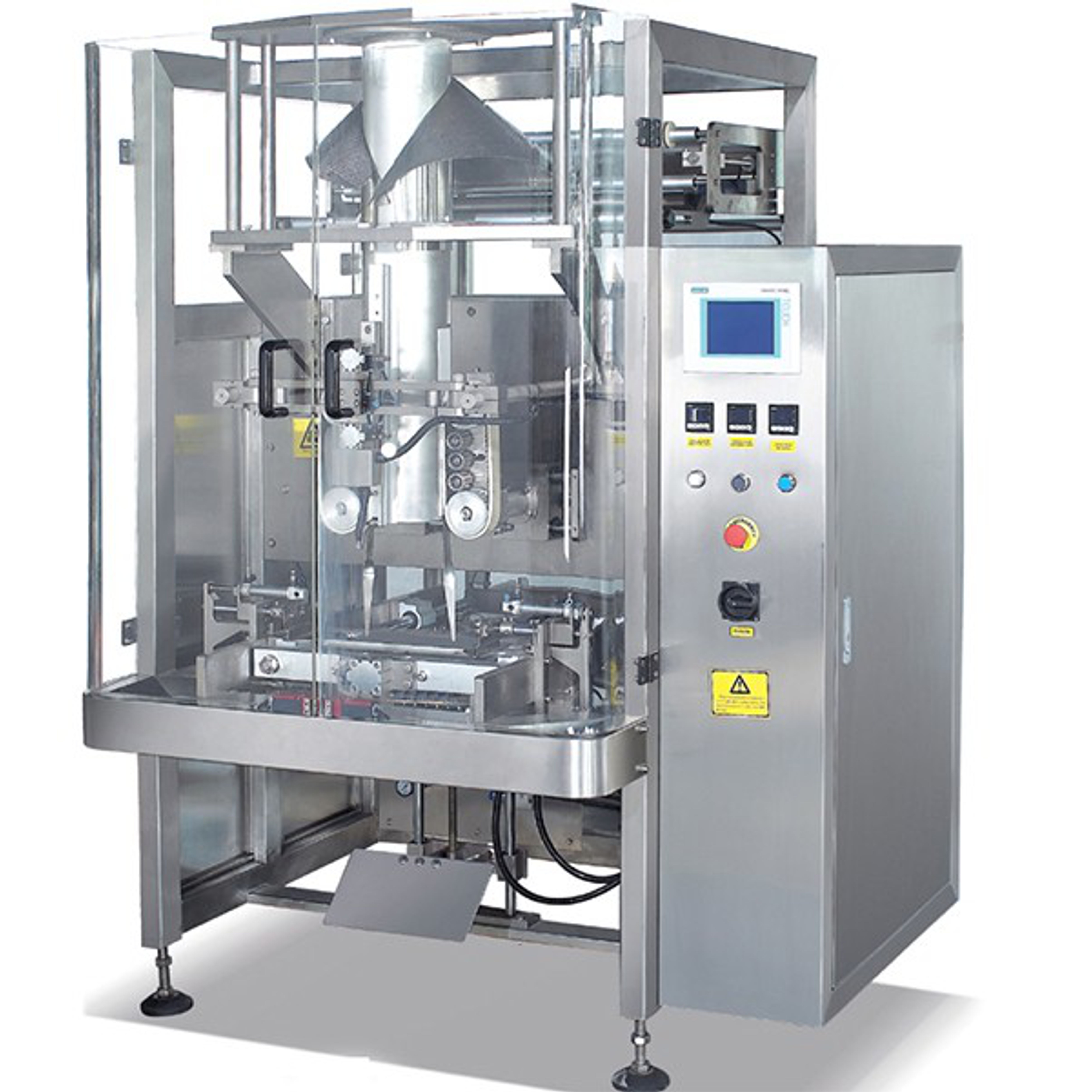

AS400 series comes with plus advantage of automation equipped with CE marked PLC Controllers & touch screen HMI. This machine is mainly designed to pack 500 gm to 10000 gm product packaging. In this machine film pulling is driven by servo motor also adjustable stroke for sealing jaw for optimum performance. It is designed as per stingent quality standards and can be easily integrated to upstream or downstream machines/system.
- Specification
- Applications
- Features
- Fillers & Weighers
- Pouch Format
Specification
| Machine | AS400 | AS400S |
|---|---|---|
| Bag Width | 150-400 | 50-250 |
| Bag Length | 250-480 | 70-370 |
| Output | Upto 60 Bags/Min. | Upto 100 Bags/Min. |
| Max Roll Diameter | 650 mm (76 mm Core) | 550 mm (76 mm Core) |
| Horizontal Table | Pneumatically Driven | Servo Driven |
| Power | 3x415 V, 50 Hz | 3x415 V, 50 Hz |
| Connected Load | 4 kW | 7 kW |
| Compressed Air Requirement | 10 CFM @ 6 Bar | 4 CFM @ 6 Bar |
| Weight (Approx.) | 850 Kg. | 850 Kg. |
| Outer Dimenstion in MM | 1980 x 1320 x 1800 | 1980 x 1320 x 1800 |
Applications
- Inert Gas Flushing
- Checkweigher and Metal Detector System
- Pouch Takeup Conveyors
- Product Feeding System
- Platform for Filler
- Gusset System
- Antitrickling System
- Pin Hole System
- PIP System
Fillers & Weighers<
AS400 can be synchronized with any one of the following fillers to pack any kind of solid products:
- Servo Auger Filler
- Multi Head Weigher
- Linear Weigher Filler
- Volumetric Cup Filler
Pouch Format
CSPP
CSGP

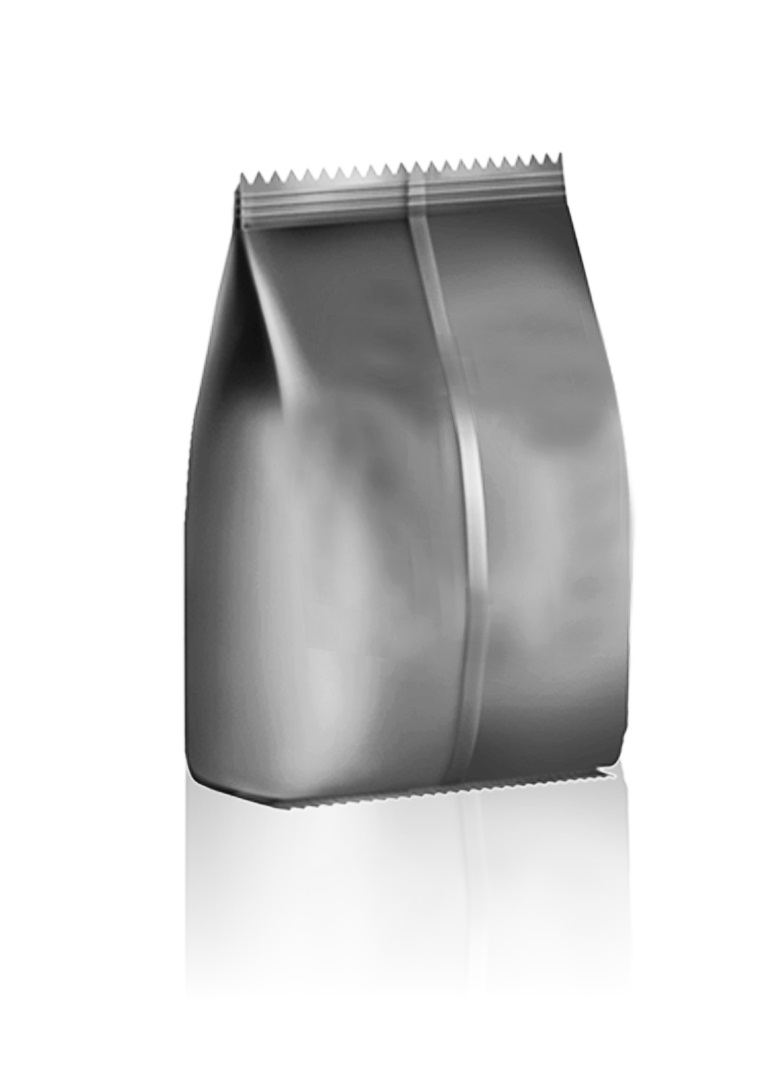

CSGP Block Bottom

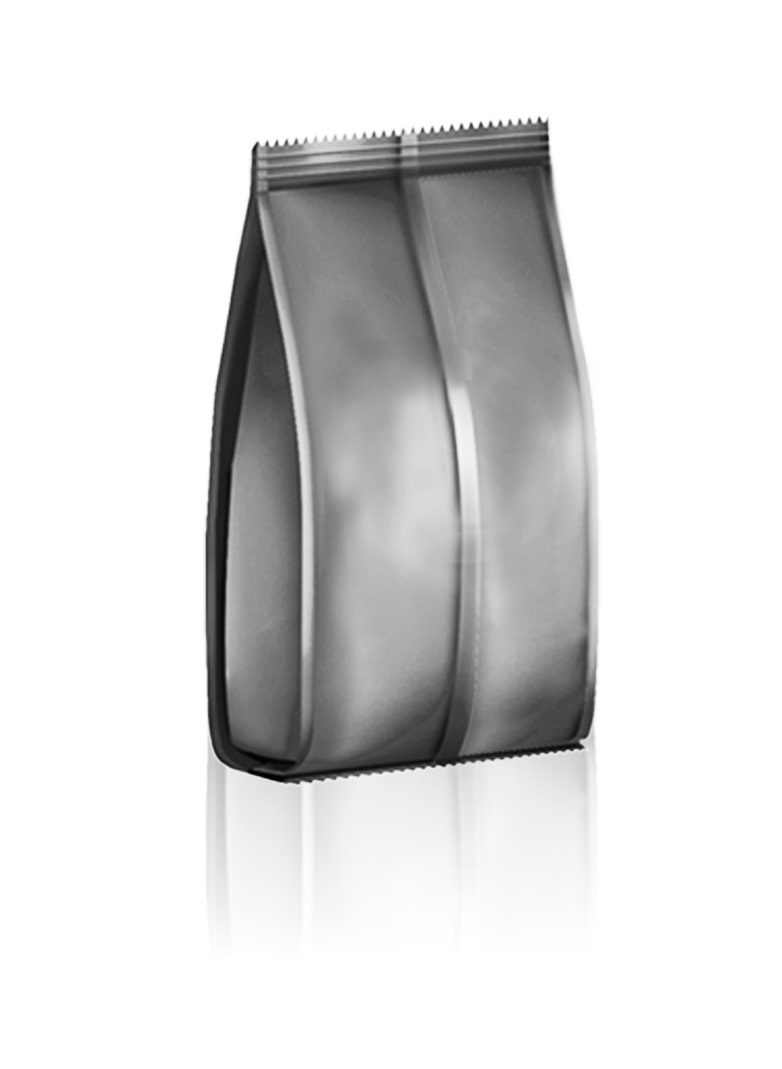

Penta Seal

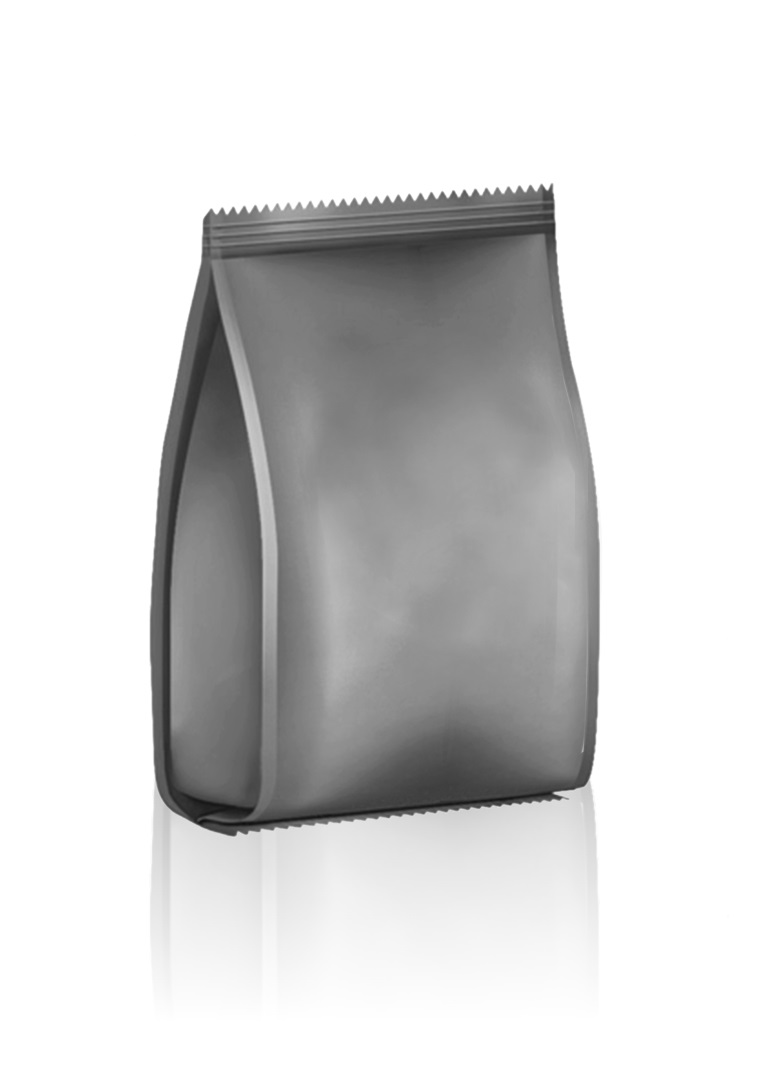

Fourline Seal
Features
- Inert Gas Flushing
- Checkweigher and Metal Detector System
- Pouch Takeup Conveyors
- Product Feeding System
- Platform for Filler
- Gusset System
- Antitrickling System
