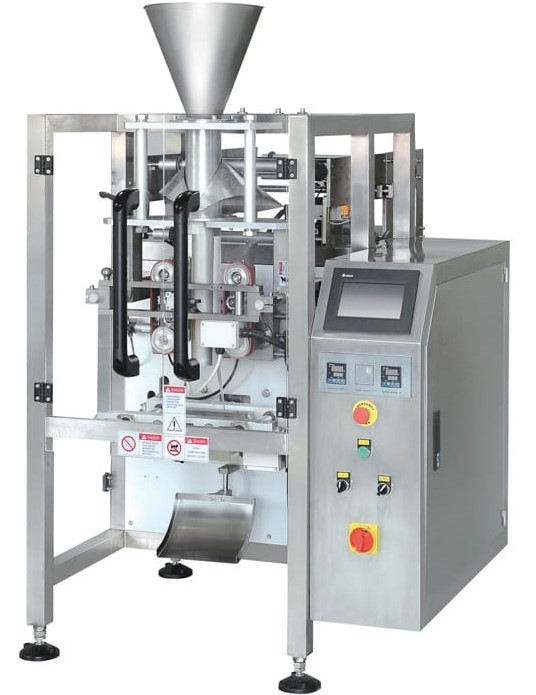

AS200 is compact & versatile design high speed intermittent motion vertical form fill seal machine is controlled by CE marked PLC Controllers. This machine is mainly designed to pack 5 gm to 1000 gm product packaging. In this machine servo and pneumatically driven horizontal sealing available also film pulling is driven by servo. It is designed as per stingent quality standards and can be easily integrated to upstream or downstream machines/system.
- Specification
- Applications
- Features
- Fillers & Weighers
- Pouch Format
Specification
| Machine | AS200 | AS200S |
|---|---|---|
| Bag Width | 35-200 | 35-200 |
| Bag Length | 50-300 | 50-300 |
| Output | Upto 90 Bags/Min. | Upto 110 Bags/Min. |
| Max Roll Diameter | 450 mm (76 mm Core) | 450 mm (76 mm Core) |
| Horizontal Table | Pneumatically Driven | Servo Driven |
| Power | 3x415 V, 50 Hz | 3x415 V, 50 Hz |
| Connected Load | 3.5 kW | 7 kW |
| Compressed Air Requirement | 10 CFM @ 6 Bar | 4 CFM @ 6 Bar |
| Weight (Approx.) | 700 Kg. | 700 Kg. |
| Outer Dimenstion in MM | 1590 x 1070 x 1480 | 1590 x 1070 x 1480 |
Applications
- Snack Food Products
- Cereal and Health Foods
- Confectionery
- Tea
- Nuts and Dried Fruit
- Granulated Products
- Pasta and Pulses
- Coffee
- Ground Spices
- Whole Spices
- Frozen
- Tablets & Capsules
- Hardware & Plastic Components
Fillers & Weighers<
AS200 can be synchronized with any one of the following fillers to pack any kind of solid products:
- Servo Auger Filler
- Multi Head Weigher
- Linear Weigher Filler
- Volumetric Cup Filler
Pouch Format
CSPP
CSGP
3SS
Features
- Inert Gas Flushing
- Checkweigher and Metal Detector System
- Pouch Takeup Conveyors
- Product Feeding System
- Platform for Filler
- Gusset System
- Antitrickling System
